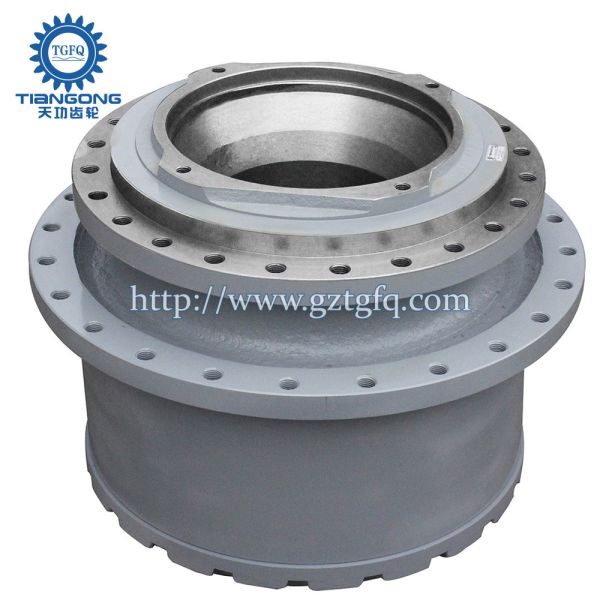

Crawler Excavator Planetary Reduction Gearbox ZAX650 Zaxis650 9189960
ZAX650 Zaxis650 Planetary Reduction Gearbox Device For Apply Crawler Excavator
Product parameter:
| Product name: | Travel Planetary Reduction |
| Place of Origin: | China(Mainland) |
| Model: | ZAX650 Zaxis650 |
| Part Number: | 9189960 |
| MOQ: | 1 PCS |
| Package Size: | 83*83*70CM |
| Delivery time: | Within 1-3 days after receiving the payment |
| Means of Transport: | By Sea, By Air or By Express |
1st sun gear : 4476046
| Pos. | Part No | Qty | Parts name |
| | 9189960 | [2] | T.MISSION |
| 1 | 4353496 | [1] | HOLDER |
| 2 | 4353497 | [3] | GEAR;PLANETARY |
| 3 | 4246786 | [3] | BRG.;NEEDLE |
| 4 | 4353498 | [6] | WASHER;THRUST |
| 5 | 4353499 | [3] | SHAFT |
| 6 | 4105691 | [3] | PIN;SPRING |
| 7 | 4476041 | [1] | WASHER |
| 8 | 4353501 | [1] | HOLDER |
| 9 | 4353502 | [3] | GEAR;PLANETARY |
| 10 | 4289648 | [3] | BRG.;NEEDLE |
| 11 | 4353503 | [6] | WASHER;THRUST |
| 12 | 4353504 | [3] | SHAFT |
| 13 | 4144018 | [3] | PIN;SPRING |
| 14 | 4353505 | [1] | WASHER |
| 15 | 4353506 | [1] | HOLDER |
| 16 | 4476044 | [4] | GEAR;PLANETARY |
| 17 | 4452484 | [8] | BRG.;NEEDLE |
| 18 | 4353508 | [8] | WASHER;THRUST |
| 19 | 4472150 | [4] | SHAFT |
| 20 | 4144028 | [4] | PIN;SPRING |
| 21 | 4476046 | [1] | GEAR;DRIVE |
| 22 | 4353511 | [1] | GEAR;SUN |
| 23 | 4476043 | [1] | GEAR;SUN |
| 24 | 4476045 | [1] | GEAR;RING |
| 25 | 4476047 | [1] | FLANGE |
| 26 | 4350347 | [1] | SEAL;GROUP |
| 27 | 4200411 | [2] | BRG.;ROL. |
| 28 | 4353515 | [1] | NUT |
| 29 | 4353516 | [1] | PLATE;LOCK |
| 30 | 4353517 | [2] | BOLT |
| 31 | 4661030 | [1] | HOUSING |
| 32 | 4353519 | [4] | PIN |
| 33 | 4353520 | [1] | COVER |
| 33 | 4672724 | [1] | COVER |
| 34 | 4353521 | [1] | BUTTON |
| 35 | 4274541 | [1] | BRG.;BALL |
| 36 | M221440 | [20] | BOLT |
| 36 | J921440 | [20] | BOLT |
| 37 | A590914 | [20] | WASHER;SPRING |
| 38 | 94-2014 | [3] | PLUG |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.
FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.
Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
